Security Architecture Review

| Security Architecture Review is a security-first assessment of architecture-level changes in a pull request. It follows changed components across trust boundaries, controls, sensitive operations, and downstream dependencies to help reviewers understand the potential security impact of a design change. Security Architecture Review is included with the Security Agent and is available through Change Stack. It complements CodeRabbit’s line-level findings by focusing on system behavior and exposure that can span multiple files or services, such as an authorization decision crossing an API boundary, a credential reaching a new execution environment, or sensitive data entering a new service or external integration.

​

When the review appears

CodeRabbit generates the assessment only when the review is covered by an active Security trial or Security add-on and contains enough security-relevant architecture evidence for a useful design-level analysis. Relevant evidence can include changes to trust or identity boundaries, security controls, sensitive data flows, infrastructure, tool authority, or downstream dependencies. When generated, the assessment appears in the CodeRabbit walkthrough comment and in Overview in Change Stack. Pull requests without a material architecture signal continue through the standard review path and do not show an empty Security Architecture Review section.

​

How it works

Security Architecture Review evaluates the reviewed diff using the codebase context available to CodeRabbit. It focuses on design-level security implications that can span files, components, and trust boundaries. The assessment is limited to the reviewed commit and available context. Missing evidence is a coverage gap, not evidence that the design is safe.

​

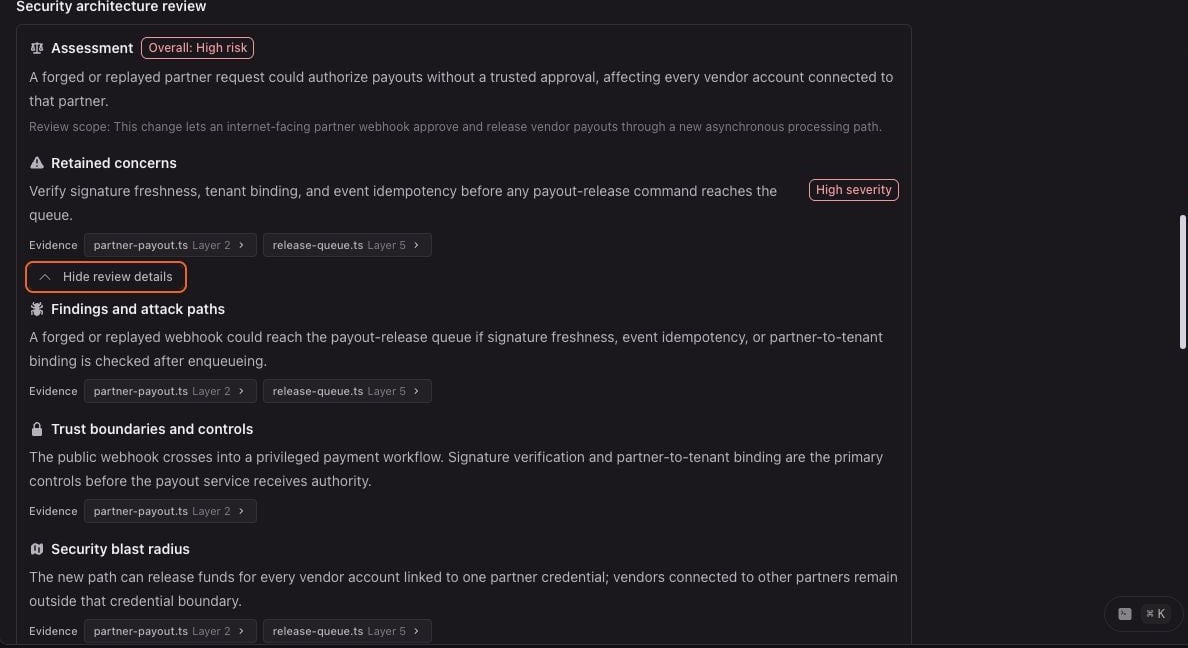

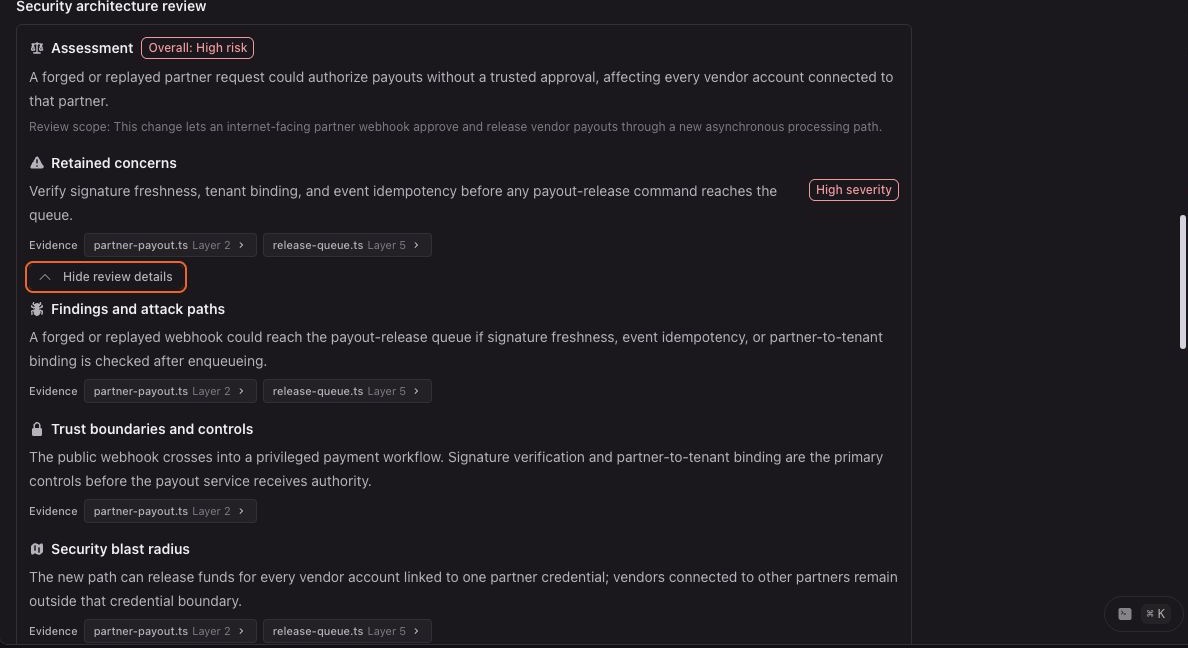

Interpret the assessment

The assessment starts with an overall risk label and an explanation of why that label applies. The labels are ordered from Minimal to Critical: The assessment can also include:

• Review scope — Why the pull request required an architecture-level security review.
• Retained concerns — The most important concerns, each with a severity and supporting evidence when available.
• Findings and attack paths — Potential paths from an entry point or untrusted input to a security-sensitive operation.
• Trust boundaries and controls — Boundaries crossed by the change and the controls expected to protect them.
• Security Blast Radius — Systems, services, assets, users, or environments that could be affected.
• Hardening proposals — Suggested defense-in-depth improvements. These are proposals, not observed vulnerabilities.
• Resilience and maintainability implications — Reliability or ownership concerns included only when they affect security guarantees, containment, or recovery.

Select See review details in Change Stack to expand the supporting sections.

​

Follow the evidence

Evidence links in the assessment connect a concern or claim to the relevant file and layer in Change Stack. Select an evidence link to open that layer and inspect the cited range in the reviewed diff. When more than two references support a claim, select +N more to see the additional evidence. Use Security Blast Radius to explore the same concerns across affected components. The Security control shows the number and highest severity of architecture findings. Expand Security findings to read each finding, then select a highlighted component to inspect its evidence and relationships.

​

Limitations

• The result covers only the files, context, and commit available to the review. It is not a repository-wide security audit.
• No Security Architecture Review section, or no retained concerns, does not prove that a pull request is secure.
• Missing or partial evidence can limit the analysis. CodeRabbit reports supported conclusions and does not treat unavailable evidence as proof of safety.
• Hardening proposals describe possible improvements and should not be interpreted as confirmed vulnerabilities without supporting evidence.
• The assessment does not replace threat modeling, security testing, required approvals, or provider merge protections.

​
